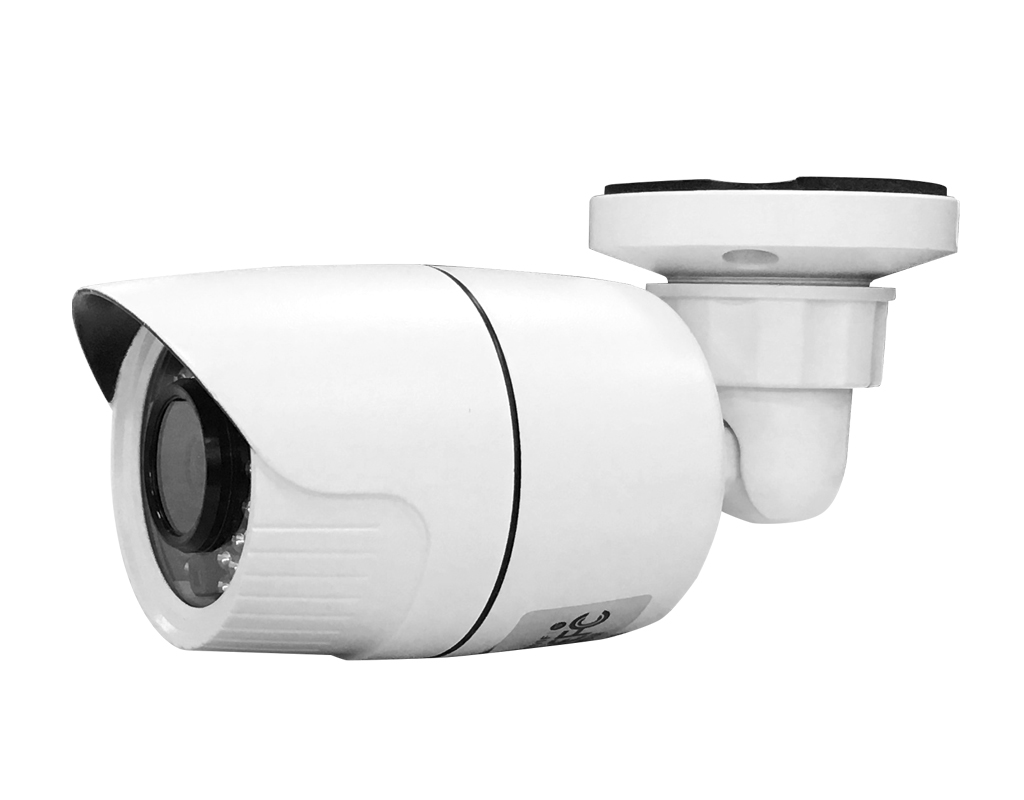

3M IP Camera‧ HS-T039QY

Model		HS-T039QY
Compression method		H.264 / M-JPEG
Image Sensor		1/3" CMOS
Image Pixels		2048 x 1536
Resolution		3MP (2048x1536) / 1080P (1920x1080) / 720P (1280x720) / D1 / CIF / 480x240
Triple streaming		S1: 3MP@15fps / 1920x1080@30fps S2: 1280x720@10fps / D1@30fps / CIF@30fps S3: CIF@30fps / 480x240@30fps
Bit Rate		64Kbps ~ 8Mbps
Stream transmission		CBR / VBR
LAN Port		Ethernet (10/100Base-T), RJ45 connector
Protocol		TCP/IP , UDP , DHCP , NTP , RTSP , PPPoE , DDNS , SMTP , FTP
Web Browser		Microsoft Internet Explorer 8.0 or above
Electronic Shutter		Auto 1/25 ~ 1/100,000 sec.
Min. Illumination		0 Lux (IR LED ON)
IR Distance		30 M
ICR		Yes
PoE		Yes
Lens Type		Board Lens 3.6mm
Power Source		DC12V / PoE
Operating Temperature		-20°C~50°C,10% ~90% humidity
Dimension		219.4mm x ø86.7 (Diameter)mm
Weatherproof		IP66
