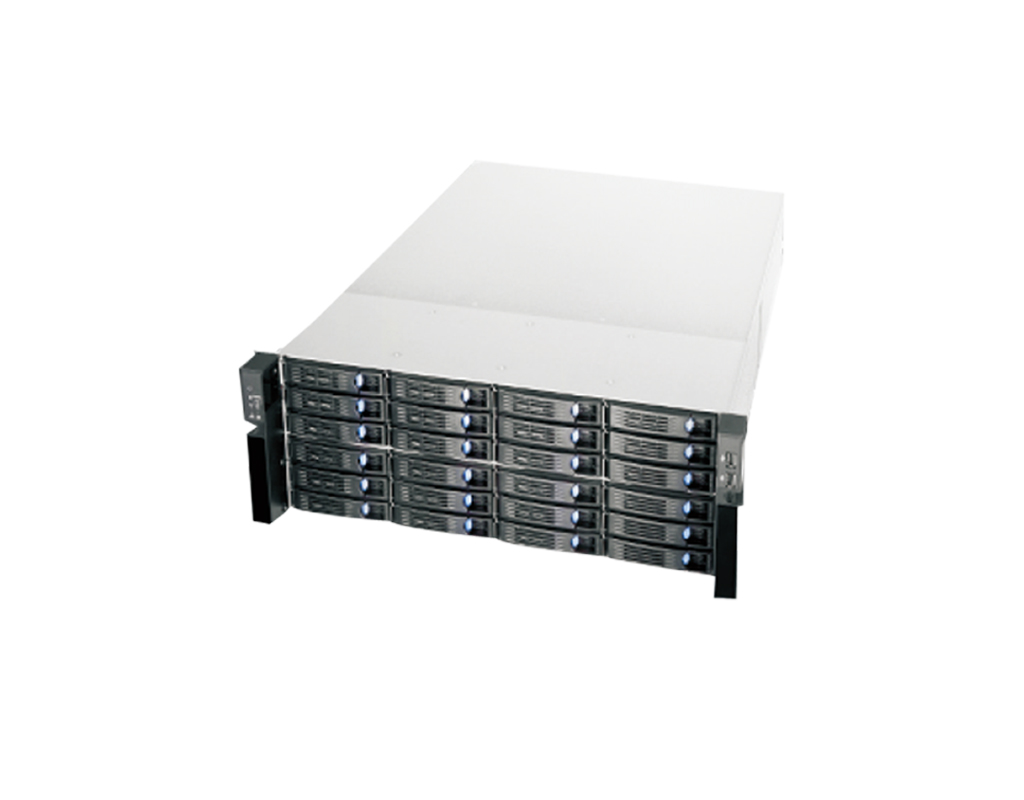

Model
|
HS-NBB360
|
Channel
|
128CH
|
Compression Method
|
H.265 / H.264
|
Video
Output
VGA
|
1920x1080 / 1280x1024
|
Video
Output
HDMI 1
|
4K : 3840x2160 / 1920x1080 / 1280x1024
|
Video
Output
HDMI 2
|
1920x1080 / 1280x1024
|
Color
|
16.7 million
|
Max. Network Bandwidth
|
384 Mbps
|
Max. Simultaneously Playback
|
16 CH
|
Max. Display Channel
|
73 (HDMI1+HDMI2)
|
Sequence Display
|
Available
|
Recording Resolution
(Total)
|
8M/5M/4M/3M/1080P/720P@1920fps(NTSC)
8M/5M/4M/3M/1080P/720P@1800fps(PAL)
|
Record Quality
|
Highest / Higher / High / Medium / Lower / Lowest
|
Recording Mode
|
Manual / Alarm / Motion / Schedule
|
Playback Mode
|
Time slice / Date & Time search / Event search
|
Multi-task
|
Live / Record / Playback / Network / Backup
|
Backup
|
USB 3.0x1 / USB 2.0x2(front) / e-SATAx1 / Network remote backup
|
Storage
|
SATA x16 (8TB each, extraction style)
|
Audio
|
Input : 1 ; Output : 1
|
Alarm Input
|
8 (local) + 128 (ip camera)
|
Alarm Output
|
4
|
HDD Record Mode
|
Full stop / overwrite
|
Mobile Surveillance
|
iPhone / iPad / Android
|
RS485
|
2 (keyborad x1, PTZx1)
|
RAID
|
0 / 1 / 5 / 6 / 10
|
Mouse
|
Standard
|
Ethernet
|
RJ45 x2 (10/100/1000 M Base-T)
|
Network-Function
|
Support licensed CMS(100CH) / EMAP / IE
|
Network Connection
|
TCP/IP, PPPoE, DHCP, DDNS(Auto DDNS)
|
Client Application
|
Display / Playback / Backup / DVR control / PTZ Control
|
Power Source
|
AC 110V / 230V
|
Operating Temperature
|
5℃ ~ 40℃
|
Operating Humidity
|
Less than 90%
|
Dimension
|
437(W) x 143(H) x 483(D) mm
|
